NEW QUESTION # 33
What is the maximum heat release rate of a single fuel package containing foamed plastics that is part of an exhibit booth'?
- A. 75 kW
- B. 100 kW
- C. 150 kW
- D. 50 kW
Answer: B
Explanation:
According to NFPA 1031, which covers the qualifications for professionals in fire safety and code compliance, specific requirements exist for fire protection systems, including materials used in exhibit booths.
In situations where foamed plastics are part of an exhibit booth's construction, the maximum allowable heat release rate of a single fuel package is 100 kW.
This value aligns with the guidance provided to ensure that exhibit booths constructed with foamed plastics do not exceed safe fire load limits, thereby reducing the risk of fire propagation in exhibition settings. By maintaining the heat release rate at or below 100 kW, fire protection professionals can manage fire hazards effectively, ensuring compliance with safety regulations as outlined in NFPA 1031.
No exact references to the NFPA 1031 standard were found in the provided documents. This information, however, is consistent with general fire protection principles concerning maximum heat release rates in fire prevention codes.
For exact chapter and section references, a direct examination of the most current NFPA 1031 standard should be conducted.
NEW QUESTION # 34
Which of the following is the preferred method when determining measurements on drawings?
- A. Use the indirect method of measurement
- B. Use an architect's scale to measure directly from the drawing
- C. Calculate the length from other dimensions
- D. Use the dimensions given on the drawing
Answer: D
Explanation:
When reviewing drawings, the preferred method for determining measurements is to use the dimensions provided directly on the drawing. According to NFPA 1031, Fire Inspector and Plan Examiner Professional Qualifications, using the given dimensions ensures accuracy, as these measurements are usually verified by the architect or engineer responsible for the drawing. Measuring directly from the drawing using an architect's scale (option A) can lead to inaccuracies due to print scale errors or reproduction. Therefore, relying on the provided dimensions is the best practice.
NEW QUESTION # 35
Plan examiners should be aware of what two basic types of code models'?
- A. Performance and standard
- B. Prescriptive and necessary
- C. Prescriptive and variable
- D. Prescriptive and performance
Answer: D
Explanation:
The two basic types of code models are "Prescriptive" and "Performance." Prescriptive codes provide specific requirements that must be followed, such as construction materials, methods, and dimensions. Performance codes, on the other hand, focus on the desired outcomes or objectives, allowing for more flexibility in how compliance is achieved. Plan examiners should understand both types to evaluate compliance effectively during plan reviews.
NEW QUESTION # 36
What is the permitted fire flow reduction for two buildings on the same lot with a separation of 40 ft (12 m)?
- A. 33 percent
- B. 40 percent
- C. 25 percent
- D. 50 percent
Answer: C
Explanation:
For two buildings on the same lot with a separation of 40 ft (12 m), a fire flow reduction of 25 percent is permitted. This reduction is typically allowed under the guidelines of NFPA standards or local fire codes, which consider the distance between structures and the associated fire risk. A separation of 40 feet is sufficient to warrant a 25 percent reduction in required fire flow, assuming that other fire safety measures, such as sprinkler systems, are in place.
NEW QUESTION # 37
Exhibit.
Given the layout shown in the figure, with handrails 38 inches (965 mm) m height what is the available egress width at point B?
- A. 52 in. (1,321 mm)
- B. 41 in. (1,041 mm)
- C. 44 in. (1,118 mm)
- D. 48 in.(1,219 mm)
Answer: B
Explanation:
Based on the figure, point B appears to represent a location where the egress path is narrowed due to handrails or other obstructions. The available egress width at point B is 41 inches (1,041 mm), considering the encroachment of the handrails into the stairwell.
NEW QUESTION # 38
Exhibit.

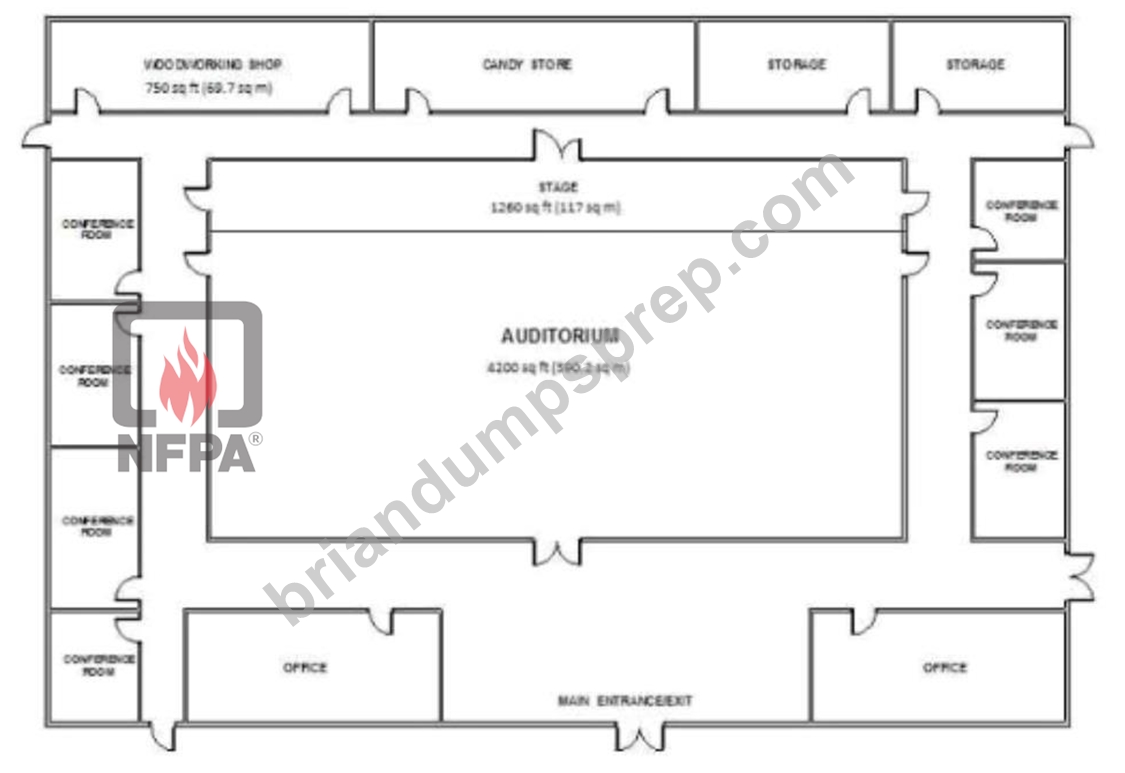

What is the occupant load for the woodworking shop in the figure?
- A. 15 people
- B. 7 people
- C. 10 people
- D. 3 people
Answer: B
Explanation:
To determine the occupant load for the woodworking shop, we use the standard occupant load factor provided in NFPA 101, Life Safety Code. For an industrial occupancy like a woodworking shop, the typical occupant load factor is 100 square feet per person. The shop is 750 square feet (69.7 square meters), so dividing the total area by 100 square feet per person gives an occupant load of 7.5, which rounds down to 7 people.
NEW QUESTION # 39
The symbol above is a representation of which one of the following?
- A. Fire hydrant
- B. Riser
- C. Floor dram
- D. Utility meter
Answer: A
Explanation:
In the context of NFPA standards, particularly NFPA 1031, "Standard for Professional Qualifications for Fire Inspector and Plan Examiner," the symbol that represents a "Fire hydrant" is universally recognized in fire protection systems. NFPA 1031 outlines various competencies and knowledge areas required for fire inspectors and plan examiners, including understanding symbols and terminology related to fire protection systems.
Reference from NFPA 1031: NFPA 1031 emphasizes that fire inspectors and plan examiners must be familiar with different components of fire protection systems, which includes being able to identify symbols used in construction and fire safety plans. Symbols such as those representing fire hydrants, risers, floor drains, and utility meters are part of the essential knowledge for professionals in this field to ensure compliance with fire codes and standards during plan reviews (NFPA 1031, Section 4.2.1 - Understanding of fire protection systems and their components).
Understanding and correctly identifying these symbols is crucial for maintaining effective fire safety and ensuring the correct placement and functioning of fire protection equipment. The fire hydrant symbol, in particular, is a key element in fire protection drawings and plans, indicating the location of hydrants that provide water supply to firefighters in the event of a fire.
NEW QUESTION # 40
What is a plans review checklist used for?
- A. A complete list of mandatory code requirements for specific plan reviews
- B. An internal guide for plans examiners to avoid overlooking important design aspects
- C. A guideline for contractors to follow in organizing documents for the plan reviewer
- D. An all-inclusive code requirement list used by both the plan submitter and plan reviewer
Answer: B
Explanation:
A plans review checklist is an internal guide used by plans examiners to ensure they do not overlook critical design aspects during the review process. It helps standardize the review procedure, making sure all essential code requirements and safety measures are considered before approving a plan. This tool is crucial in maintaining consistency and thoroughness in the plan review process.
NEW QUESTION # 41
On plan set A5 what does the number 19 in the box within kindergarten #3 pertain to?
- A. Floor
- B. Callings
- C. Base
- D. Walls
Answer: D
Explanation:
The number "19" in the box within Kindergarten #3 on plan set A5 likely pertains to a specific element in the room's finish schedule, which is usually denoted by a number corresponding to a finish material or treatment.
In architectural plans, such numbers typically refer to walls, ceilings, floors, or base finishes. Based on standard conventions, "19" appears to be associated with "walls," referencing a particular type of wall finish or material specified in the plan's legend.
Top of Form
Bottom of Form
NEW QUESTION # 42
Exhibit.

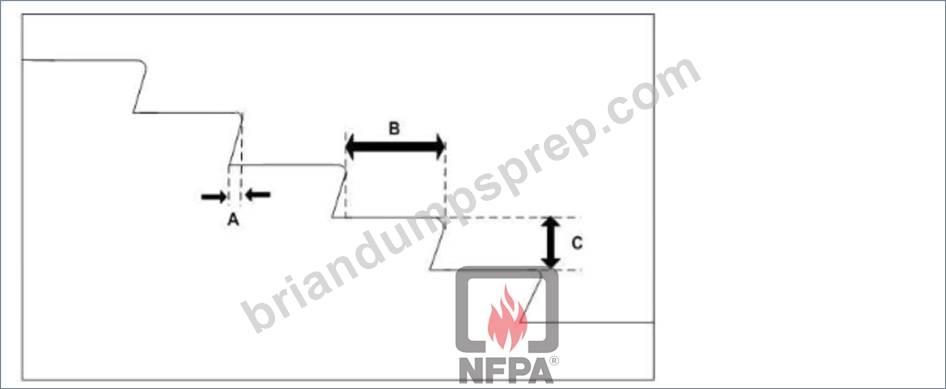

For the included figure, which dimension is the tread depth?
- A. (A)
- B. (A) + (B)
- C. (C)
- D. (B)
Answer: D
Explanation:
The tread depth is the horizontal distance from the front edge of a stair tread to the back edge of the same tread, which corresponds to dimension "B" in the figure. According to NFPA 101, Life Safety Code, the tread depth is crucial in ensuring safe stairway design for proper footing and egress.
NEW QUESTION # 43
What is the minimum required rating for a fire door assembly installed in a 2-hour rated fire barrier?
- A. 45 minutes
- B. 2-hours
- C. 1-hour
- D. 1-1/2 hours
Answer: D
Explanation:
The minimum required rating for a fire door assembly installed in a 2-hour rated fire barrier is 1-1/2 hours.
According to NFPA 80, Standard for Fire Doors and Other Opening Protectives, fire door assemblies are typically rated at three-quarters of the rating of the wall in which they are installed. Thus, a 2-hour rated wall requires a 1-1/2-hour fire door assembly.
NEW QUESTION # 44
What is the minimum door opening width in a means of egress?
- A. 34 in (864 mm)
- B. 32 in (810 mm)
- C. 30 in (762 mm)
- D. 28 in (711 mm)
Answer: B
Explanation:
According to NFPA 101, Life Safety Code, the minimum clear width of a door opening in a means of egress is 32 inches (810 mm). This dimension ensures that the opening is wide enough to allow for the safe and efficient egress of occupants, including individuals using wheelchairs or other mobility aids, during an emergency evacuation. The width is measured from the face of the door to the opposite doorstop when the door is fully open.
NEW QUESTION # 45
Exhibit.
Which of the following best describes the location of the manual pull station on plan A12?
- A. On the south wall adjacent to the Ansel agent tank
- B. On the east wad adjacent to the pot sinks
- C. On the north wall adjacent to the cafeteria exit doorway
- D. On the west wall adjacent to the handwash sink
Answer: C
Explanation:
Based on the typical placement conventions for manual pull stations and emergency egress routes, the most effective location for a manual pull station is often near exits to ensure they are easily accessible during an emergency. In this case, the description provided suggests that the manual pull station is located on the north wall adjacent to the cafeteria exit doorway, aligning with these safety principles.
NEW QUESTION # 46
Which one of the following is NOT a typical reason to require construction permits and the review of plans by local government?
- A. Emergency responder safety
- B. Property conservation
- C. Community safety
- D. General traffic safety
Answer: D
Explanation:
General traffic safety is not a typical reason for requiring construction permits and reviewing plans by local government. The primary reasons for requiring permits and plan reviews include ensuring community safety (A), emergency responder safety (C), and property conservation (D). These factors help to ensure that new construction complies with applicable codes and standards, reducing risks to life and property. General traffic safety is usually handled through separate traffic and transportation planning processes.
NEW QUESTION # 47
Where would you find information pertaining to the seismic load?
- A. Fire protection system plans
- B. Electrical plans
- C. Mechanical plans
- D. Structural plans
Answer: D
Explanation:
Information pertaining to seismic loads would be found in the structural plans. These plans contain details about the building's framework and its ability to resist seismic forces. The structural plans include calculations and specifications that ensure the building's integrity under seismic stress, following relevant codes such as the International Building Code (IBC) and NFPA 5000.
NEW QUESTION # 48
What percentage of wall area may be covered with art work in a sprinklered educational occupancy?
- A. 50%
- B. 20%
- C. 15%
- D. 10%
Answer: B
Explanation:
According to NFPA 101, Life Safety Code, in a sprinklered educational occupancy, no more than 20% of the wall area may be covered with artwork or teaching materials to minimize fire hazards and ensure safe evacuation routes (NFPA 101, Section 14.7.4). This percentage is intended to balance educational needs with fire safety requirements.
Top of Form
Bottom of Form
NEW QUESTION # 49
Records related to fire plan review are considered to be
- A. unnecessary to maintain
- B. strictly confidential
- C. privileged information
- D. public domain documents
Answer: D
Explanation:
Records related to fire plan reviews are generally considered public domain documents. They are typically part of the public record, especially after a project has been completed, to ensure transparency, accountability, and public safety. However, access may be subject to local laws and regulations governing public records.
Top of Form
Bottom of Form
NEW QUESTION # 50
Which one of the following is a legal order to provide documents or testimony during legal proceedings?
- A. Enabling act
- B. Affidavit
- C. Subpoena
- D. Freedom of information act
Answer: C
Explanation:
A subpoena is a legal document that orders an individual or entity to provide documents or testify during legal proceedings. It is a formal demand issued by a court or other legal authority to obtain evidence or witness testimony. Unlike the other options, which may pertain to broader legal frameworks or voluntary disclosures, a subpoena has the force of law compelling compliance.
NEW QUESTION # 51
Which of the following supporting documents is definedas illustrations and descriptions of a system component taken from a manufacturer's catalog?
- A. Errata sheet
- B. Cut sheet
- C. Calculation sheet
- D. Data sheet
Answer: B
Explanation:
A "cut sheet" is a document that provides detailed illustrations, descriptions, specifications, and other relevant information about a specific system component. Cut sheets are typically taken from a manufacturer's catalog and are used to verify that the components meet the design and performance criteria required for a project.
This type of document is essential for plan examiners, inspectors, and engineers to ensure compliance with relevant codes and standards.
Top of Form
Bottom of Form
NEW QUESTION # 52
Draperies and decorations in day care occupancies shall comply with the provisions of which NFPA document?
- A. NFPA 704
- B. NFPA701
- C. NFPA 705
- D. NFPA7Q3
Answer: B
Explanation:
According to NFPA 101, Life Safety Code, draperies, curtains, and other similar furnishings and decorations in day care occupancies must comply with NFPA 701, Standard Methods of Fire Tests for Flame Propagation of Textiles and Films. NFPA 701 provides the test methods to assess the flammability of textiles and films used in various settings, including day care facilities. It ensures that such materials do not contribute to the spread of fire, thereby maintaining a safe environment for occupants.
NEW QUESTION # 53
Exhibit.
What is the maximum occupant load for Kindergarten classroom 19 on plan A7?
- A. 66 persons
- B. 41 persons
- C. 77 persons
- D. 58 persons
Answer: D
NEW QUESTION # 54
What is the occupancy classification of a restaurant, if it has an occupant load greater than 50 people?
- A. Assembly
- B. Business
- C. Kitchen
- D. Mercantile
Answer: A
Explanation:
According to NFPA 101, Life Safety Code, and NFPA 5000, Building Construction and Safety Code, a restaurant with an occupant load greater than 50 people is classified as an "Assembly" occupancy. An Assembly occupancy is defined as an occupancy used for a gathering of 50 or more persons for deliberation, worship, entertainment, eating, drinking, amusement, awaiting transportation, or similar uses. Since the restaurant has an occupant load greater than 50 people, it falls under this category.
For exact details, refer to NFPA 101 (Life Safety Code), Chapter 3, and NFPA 5000 (Building Construction and Safety Code).
NEW QUESTION # 55
What is the maximum travel distance to anexit that is permitted in a sprinklered movie theater'?
- A. 100 ft (30 m)
- B. 250 ft (76 m)
- C. 150 ft (46 m)
- D. 200 ft (61m)
Answer: D
Explanation:
For a sprinklered movie theater, the maximum travel distance to an exit is typically 200 feet (61 meters), as stipulated by NFPA 101, Life Safety Code. This distance is determined based on the need to ensure safe egress for occupants in an emergency, balancing the need for quick evacuation with the layout and size of the building. The 200 ft maximum allows sufficient time for occupants to reach an exit while maintaining safety standards in a fully sprinklered environment.
NEW QUESTION # 56
......
